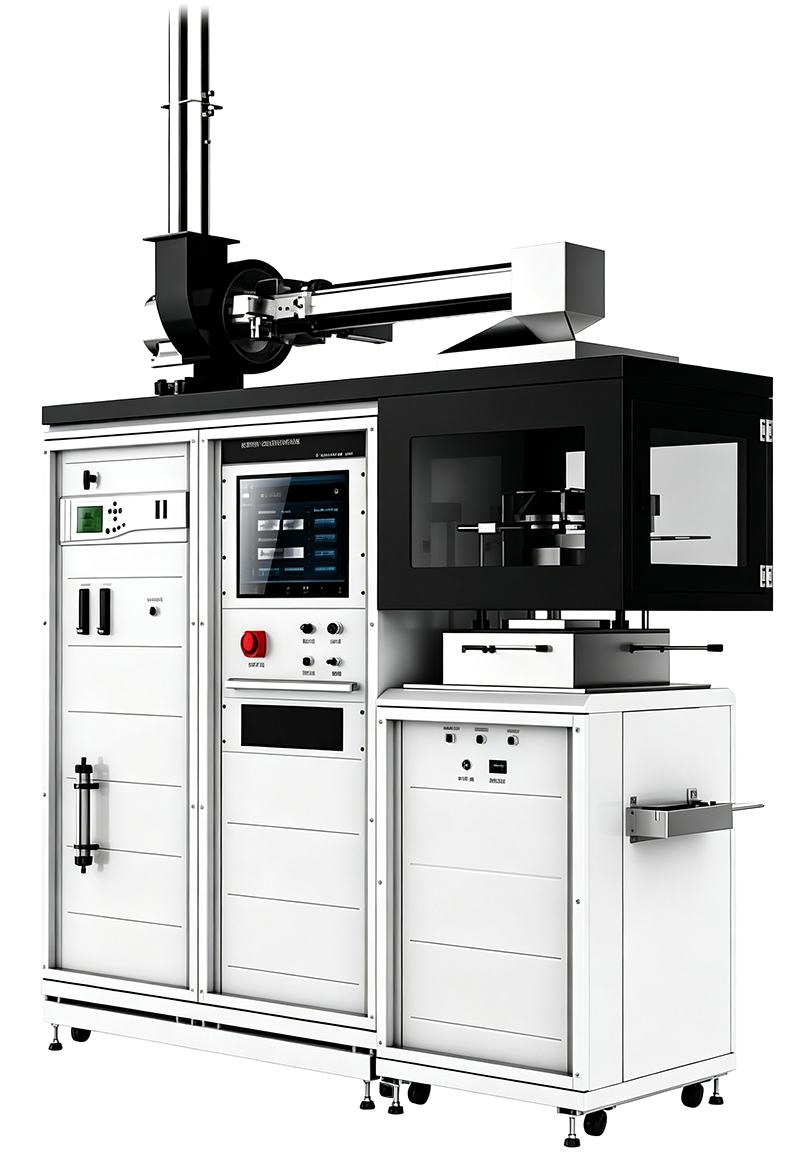

Cone Calorimeter— a combustion performance testing instrument based on the oxygen consumption calorimetry principle. By real-time measurement of oxygen consumption during material combustion, it accurately determines key fire performance parameters, including heat release rate (HRR), time to ignition (TTI), mass loss rate (MLR), and CO/CO2 generation. Fully compliant with major international standards, including ISO 5660, ASTM E 1354, and others.


          View Brochure
          Download













        Product features




        Specification




        System









Standard cabinet integrated design, elegant and stylish, easy to operate, avoiding interference factors such as vibration;

Conical heater - frusto-conical design, 230V, 5000W, heat output ranging from 0 to 120 kW/m²

19" touchscreen computer controls the entire testing process

Features such as automatic ignition, automatic timing, automatic gas cut-off and flame extinguishing, with online video recording function for the entire combustion test; the computer software is equipped with a video detection interface and can automatically save to the computer

Temperature is regulated using K-type thermocouples and PID temperature controller

Automatic shutter - protects the sample area before testing to ensure stable initial quality measurement

Sample holder - sample size 100mm x 100mm, thickness not exceeding 50mm;

Has expansion function/interfacing capabilities, and can be used in combination with other combustion equipment and heat release measurement systems in the future

The gas analyzer is internally encapsulated with CO2/CO standard gas. The CO2/CO analyzer full-scale calibration can be automatically completed through the computer software, without the need for external standard gas

Measurement system: Equipped with the original ABB brand paramagnetic oxygen analyzer imported from Germany









Type

Parameters




Dimensions

1800*900*2650mm (W*D*H)




Power supply

AC 220V, 50/60Hz, 30A




Exhaust furnace body

24L/s, Minimum exhaust rate: 50L/s




Gases

Methane, CO/CO2, Nitrogen




Accessories

Computer, Vacuum cleaner, Compressed gas













IGNITION SYSTEM

· 10 kV spark igniter with a safety flame-out device; the igniter is automatically positioned via a lever connected to the shut-off mechanism

· System functions: automatic ignition, automatic timing, automatic gas shut-off and flame extinguishing

EXHAUST SYSTEM

· Consists of an axial-flow fan, stainless steel exhaust duct, diffusion plate, collection hood, exhaust pipe, orifice-plate flow meter and thermometer

· All-stainless steel construction for extended service life; includes the hood, gas sampling probe and exhaust fan

SAMPLING SYSTEM

· Includes an annular (ring) sampler, suction pump, particulate filter, cold trap, exhaust valve, moisture filter and CO₂ filter

· Three-stage filtration; filtration rating 0.5 μm

· Refrigerated cold trap with compressor-based refrigeration system; temperature controlled at 0–5 ℃

· Sampler equipped with 12 orifices facing opposite to the gas flow direction, with a built-in soot filter; installed 685 mm from the collection hood




MEASURING SYSTEM

· ABB paramagnetic oxygen analyzer, original brand imported from Germany; O₂ measuring range 0–25%, with 0–**** range option; accuracy <0.01%, repeatability <0.01%; response time 4 s

· CO₂ measuring range 0–10%, accuracy ±2% FS, repeatability <3%; CO measuring range 0–1%, accuracy ±2% FS, repeatability <3%; response time 2.5 s

· Smoke density measurement via a Thorlabs (USA) laser-based system, accuracy ±2%; equipped with photodiodes, a 0.5 mW He-Ne laser, and primary and backup photodetectors

· Sample mass variation during testing measured by a high-precision load cell

· Temperature control: Omega (USA) original brand thermocouples, accuracy 0.1 ℃, fast temperature acquisition and long service life

· Micro differential pressure sensor (USA): accuracy ±1% FS, hysteresis ±0.1% FS, maximum linear pressure 69 kPa

· Mettherm (USA) thermopile heat flux transducer for setting the radiant heat flux on the sample surface; equipped with a water-cooling system to protect the transducer; design range 0–120 kW/m², accuracy ±3%, repeatability ±0.5%

· Kofloc (Japan) original brand mass flow controller (MFC): flow accuracy 2%
