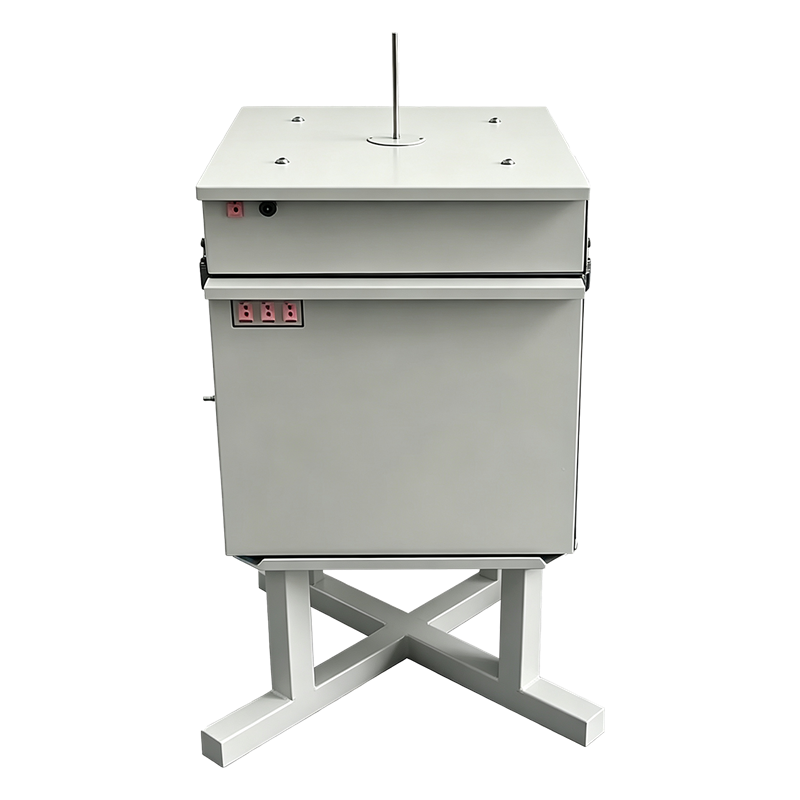

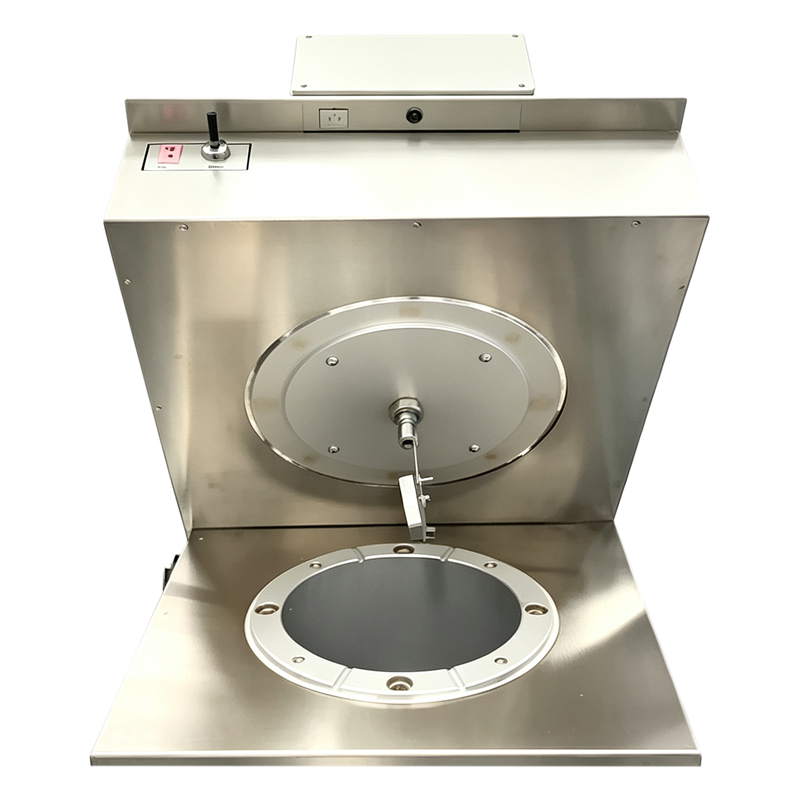

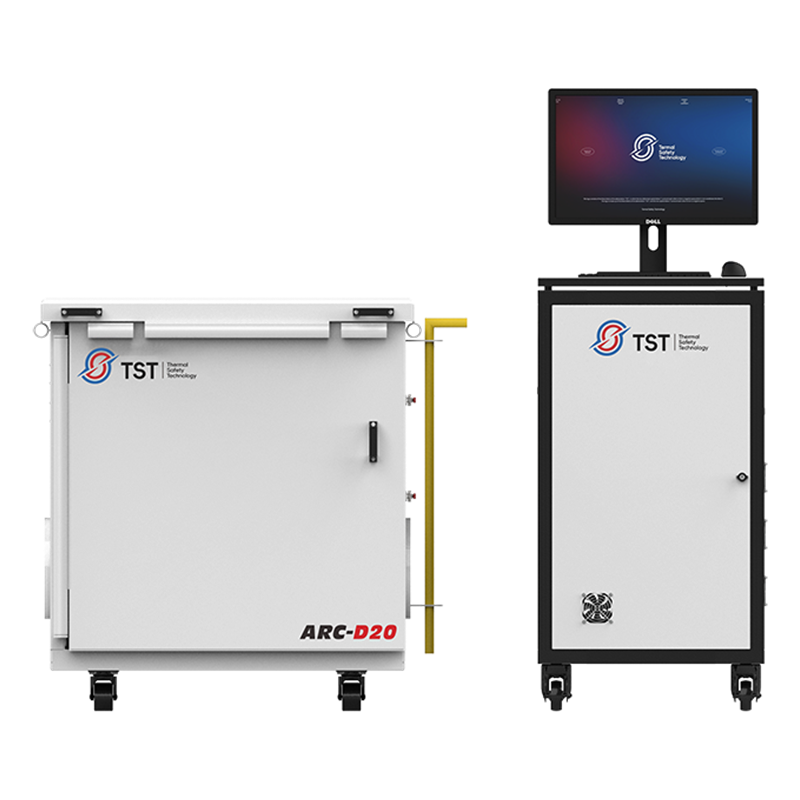

ARC—D20
Medium-size Adiabatic Accelerating Rate Calorimeter
Product Description
To fill the testing gap between the standard D9 and the high-capacity H60, TSTech has developed the ARC-D20, designed for two-wheel electric vehicles, portable energy storage devices, residential small-scale energy storage systems, and mid-range consumer power batteries. Rugged and durable, the instrument is housed in a safety explosion-proof enclosure (sample capacity: 100 mAh – 20 Ah).
Dual-system design — The D20 shares its explosion-proof enclosure with the D9 calorimeter, allowing seamless switching between material-level testing and medium-capacity cell testing, while a more flexible furnace layout enables integration of additional optional modules
Battery & chemical applications — One system covers cell-level thermal runaway and reactive chemical hazard testing across liquids, powders and pastes.

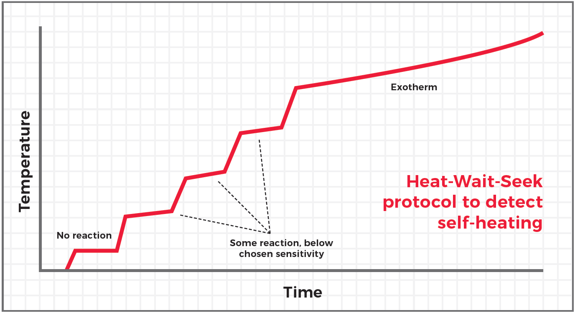

Dynamic HWS calibration — Real-time offset correction during heat-wait-search delivers near-perfect adiabatic tracking with zero temperature overshoot.
| Parameter item |
Technical indicators |
| Cavity effective size |
20cm × 25 cm |
| Cavity material: |
Aluminum |
| Temperature range |
Room temperature to -350℃ |
| Temperature resolution |
0.001℃ |
| Control accuracy |
≤ 0.2℃ |
| Pressure range: |
0 - 200 bar |
| Detection sensitivity: |
0.01℃/min |
| Maximum tracking rate |
18℃/min |
| Heating system |
has 8 built-in heaters, with three independent temperature control zones |
| Working modes |
Heating - Waiting - Searching (HWS), Isothermal, Linear Temperature Rise Program |
| Safety configuration |
Explosion-proof box, rupture disc, over-temperature safety protection, multi-level pressure safety protection mechanism |
| Accuracy |
0.7% |
| Control modes |
Isolation mode, Program heating mode, Isothermal aging mode, Specific heat capacity mode, Low temperature mode |
| Control software |
Supports real-time operation during runtime
Remote user function: The system operation authority can be transferred to any authorized PC via network or the Internet
a control system can control multiple heat exchangers
|
120×50×44
Max Custom Size (cm)
Beyond standard 20×25 cm, custom cavities up to 120×50×44 cm for larger samples or specialized fixtures
4+
Cavity Materials
Copper, Aluminum, Stainless Steel, Hastelloy — chosen by sample compatibility and thermal performance
∞
Sample Cell Types
Customizable sample cells of different sizes and types
GCMS online component analysis
Identifies off-gas species in real time to pinpoint failure mechanisms.
Stirring module
Ensures uniform temperature in liquids and slurries, eliminating localized hotspots.
Cp testing module
Measures specific heat capacity directly for accurate adiabatic correction.

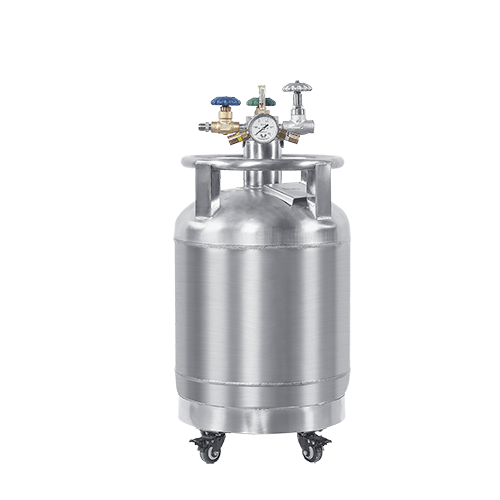

Low-temperature module
Liquid nitrogen flow for low temperature application, to -30°C start temperature
Pressure test and gas collection module
Tracks internal pressure and captures off-gas to quantify explosion risk.
More frequent temperature monitoring
Multipoint thermocouple for spatial distribution measurement
Charge-discharge test
Triggers runaway under real operating cycles for scenario-relevant results.
· More component options are available, specially designed to meet the testing requirements of specific fields.
· Includes battery safety kit and battery abuse and stress testing kit.
