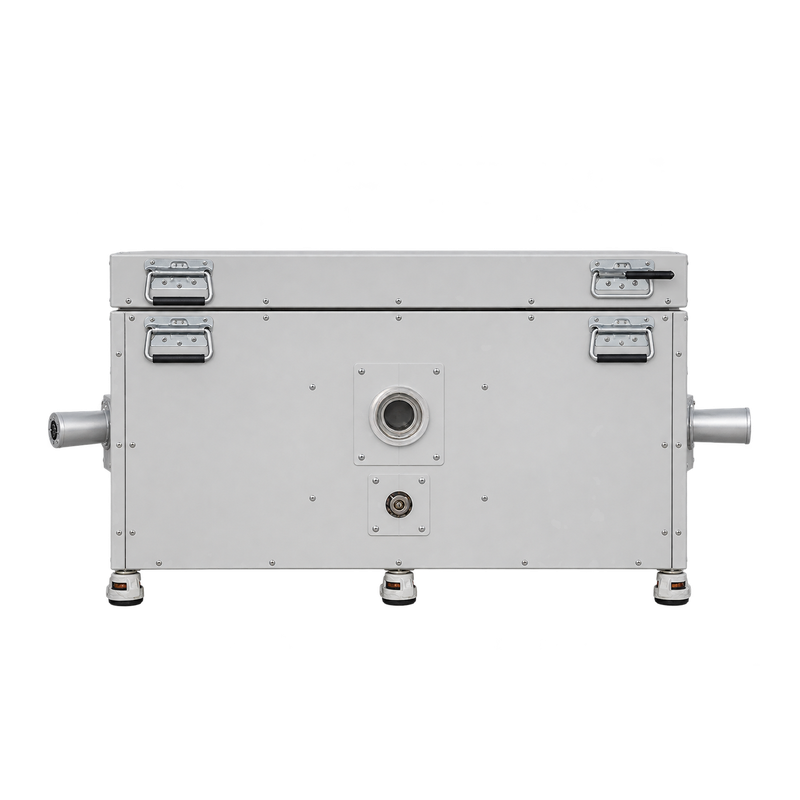

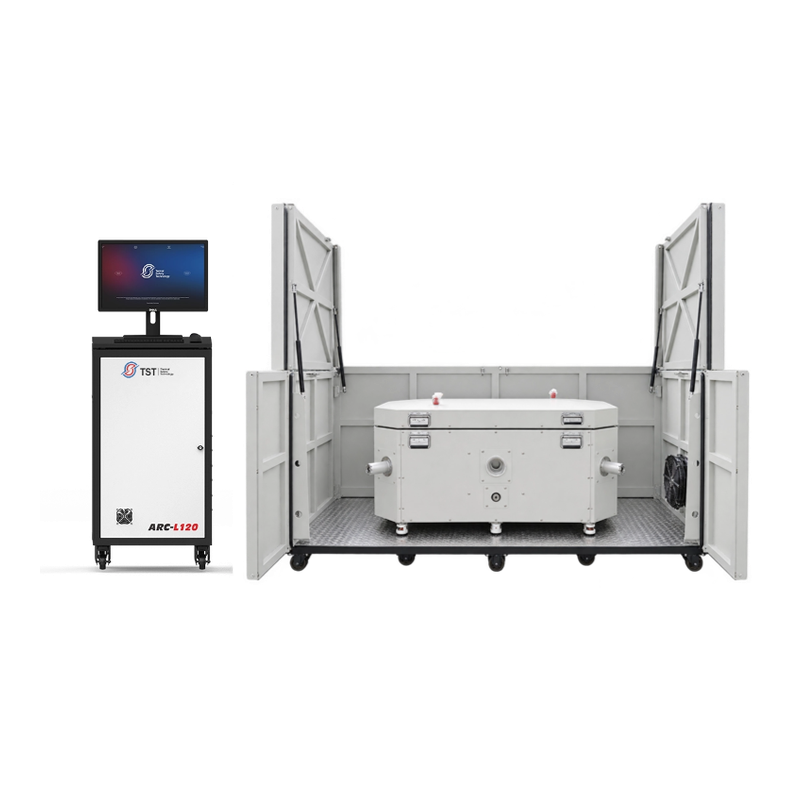

ARC—L120
Ultra-large Adiabatic Accelerating Rate Calorimeter
Product Description
The ARC-L120 redefines the boundaries of large-format adiabatic calorimetry. With a cavernous 50 × 44 × 120 cm chamber accommodating cells, modules, and blade batteries from 20 Ah to 800 Ah, it enables full-scale testing at true article size — no extrapolation, no scale-up correction. The upgraded dual-loop independent design with dual electrodes delivers simultaneous dual-test capability in a single platform, producing data that is both representative and reproducible
| Parameter item |
Technical indicators |
| Cavity effective size |
50cm × 44cm × 120cm |
| Cavity material: |
copper, aluminum, stainless steel |
| Temperature range |
Room temperature to -300℃ |
| Temperature resolution |
0.001℃ |
| Precision |
≤ 0.2℃ |
| Pressure range: |
0 - 150 bar |
| Detection sensitivity: |
0.02℃/min |
| Maximum tracking rate |
10-15℃/min |
| Heating system |
has 8 built-in heaters, with three independent temperature control zones |
| Working modes |
Heating - Waiting - Searching (HWS), Isothermal, Linear Temperature Rise Program |
| Safety configuration |
Explosion-proof box, rupture disc, over-temperature safety protection, multi-level pressure safety protection mechanism, Experimental Cabin Exhaust Gas Collection and Disposal System |
| Accuracy |
0.7% |
| Control software |
Enables real-time operation throughout the entire run
Remote User Access: System control can be transferred over a network or the Internet to any authorized PC
A single control system can manage multiple calorimeter vessels simultaneously
Automatically records, analyzes, and processes data
|
| Control unit |
PC host, data acquisition module, heating control module, I/O module; One control system can be compatible with multiple calorimeters |
| Analysis Function |
Built-in professional data analysis system, supporting Phi factor calibration, gas production volume calculation, and thermodynamic and kinetic parameter analysis |
Overview
20 Ah – 800 Ah cell coverage.
Dual-loop independent architecture. Two independent electrical channels enable parallel testing and differential electrical testing on a single instrument.

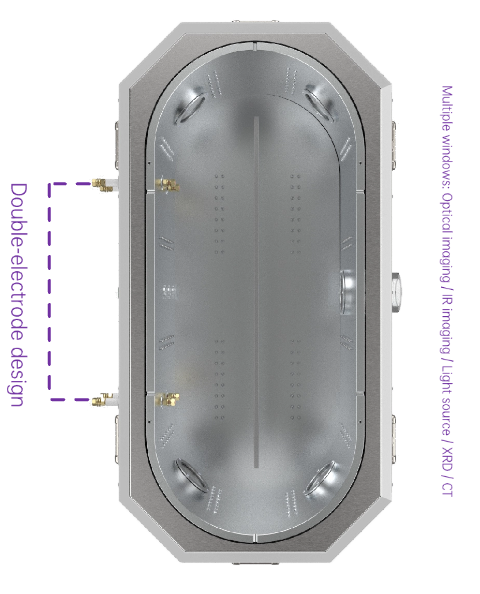

Dual-electrode configuration eliminates self-heating artifacts from the electrodes themselves, ensuring accurate results not only on large-format cells but also on smaller formats such as 18650 and 21700

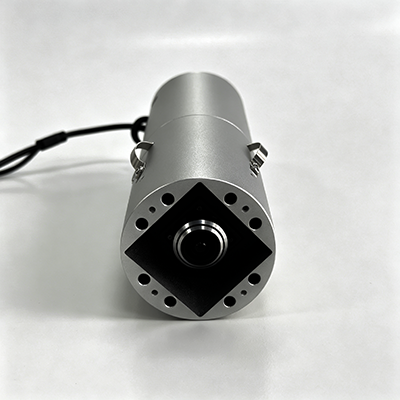

Optical Video Camera for visualising battery thermal runaway
Reference standard
USABC SAND99-0497, July 1999: 3.2 Thermal Stability Tests
SAE J2464-R2009: 4.4.2 Thermal Stability Tests
Freedom CAR SAND 2005-3123: 4.1 Thermal stability
ASTM E1981-98(2012)
SN/T 3078.1-2012 Guidelines for Evaluation of Thermal Stability of Chemicals - Part 1: Accelerated Drying Calorimeter Method
GB/T 36276
UL 9540A
UL 1973
120×50×44
Max Custom Size (cm)
Beyond standard 20×25 cm, custom cavities up to 120×50×44 cm for larger samples or specialized fixtures
4+
Cavity Materials
Copper, Aluminum, Stainless Steel, Hastelloy — chosen by sample compatibility and thermal performance
∞
Sample Cell Types
Customizable sample cells of different sizes and types
Battery Heating Module
External heating element that applies controlled thermal stress to the battery for simulating thermal abuse conditions.
Charge / Discharge Module
Hardware add-ons for simulating abuse test conditions.
Non-invasive Internal Pressure Monitoring
Non-invasive internal pressure sensing that tracks the cell’s internal pressure in real time without breaching the casing, enabling correlation analysis of gas generation and pressure buildup.
Low Temperature module
Liquid-nitrogen cooling for low-temperature applications, with an initial test temperature as low as –30 °C.
Gas Collection
Automatic gas sampling at any time, with integrated temperature and pressure monitoring.
More frequent temperature monitoring
Multipoint thermocouple for spatial distribution measurement
Cp testing module
Measures specific heat capacity directly for accurate adiabatic correction
HD Video / Infrared Thermal Imaging
Real-time simultaneous capture of visible-light imagery and infrared temperature fields, providing full documentation of visual deformation, venting events, and surface temperature distribution throughout the test.
Nail Penetration
Automated mechanical abuse testing equipment (nail penetration, crush)
