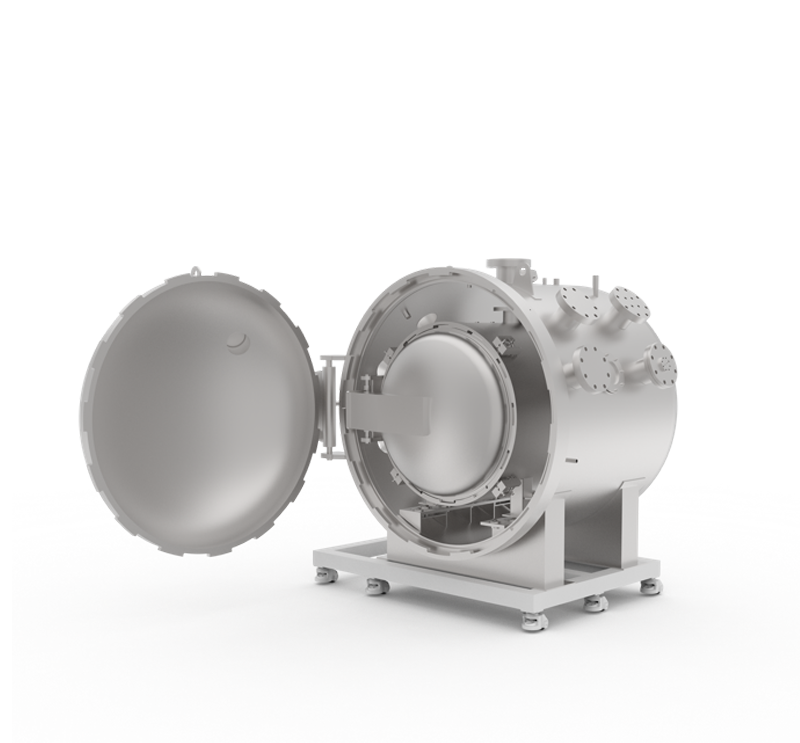

ARC—SARC
Sealed Type Isobaric Acceleration Calorimeter
Product Description
The SARC targets battery energy storage systems (BESS) and high-capacity automotive applications. Its sealed pressure vessel captures both thermal heat release and gas generation in parallel — heat, gas, and reaction kinetics integrated into one experiment, reconstructing the complete thermal runaway profile.
The main characteristics of SARC
· It is equipped with 8 heaters and has three independent temperature control zones.
· It shortens the intervals between each heating step, significantly improving the testing speed.
· The maximum tracking rate of 15°C/min and the resolution of 0.001°C enable more precise capture of the battery thermal runaway process.
Thickened stainless steel explosion-proof cavity + independent explosion-proof box, with multiple interlocking protections against overpressure and overtemperature.
Integrated gas storage and multi-channel sampling system
· The dedicated gas storage chamber captures the complete reaction atmosphere.
· The multi-channel sampling interface is compatible with various analytical instruments such as GC-MS, FTIR, and Raman.
· Time-resolved gas sampling enables the dynamic reconstruction of gas evolution.
Lightweight door opening and closing design that significantly reduces the operator’s workload.
| Calorimeter type |
Standard calorimeter |
Customized calorimeter |
| Cavity effective size |
100cm × 120cm |
Customized according to battery size |
| Cavity material: |
Stainless steel |
Stainless steel |
| Temperature range |
Room temperature to -450℃ |
Room temperature to -300℃ |
| Temperature resolution |
0.001℃ |
0.001℃ |
| Detection sensitivity |
0.02℃/min |
0.02℃/min |
| Pressure range: |
Test pressure: 0 - 7 bar
Outer chamber: 0 - 6 bar
Inner cavity: 0 - 1 bar |
0 - 200 bar |
| Cavity structure |
Dual-chamber (V₁ sample chamber + V₂ balancing chamber) |
| Maximum tracking rate |
10-15℃/min |
| Heating system |
has 8 built-in heaters, with three independent temperature control zones |
has 8 built-in heaters, with three independent temperature control zones |
| Working modes |
Heat - Wait - Search
Isothermal
Programmed linear heating
Inflating
Isobaric
Internal and external pressure chamber force balance
|
| Safety configuration |
Thickened stainless steel cavity, independent explosion-proof box, multi-layer interlocking |
Thickened stainless steel cavity, independent explosion-proof box, multi-layer interlocking |
| Accuracy |
0.7% |
| Control software |
· Enables real-time operation throughout the entire run
· Remote User Access: System control can be transferred over a network or the Internet to any authorized PC
· A single control system can manage multiple calorimeter vessels simultaneously
· Automatically records, analyzes, and processes data
|
| Analysis Function |
Built-in professional data analysis system, supporting Phi factor calibration, gas production volume calculation, and thermodynamic and kinetic parameter analysis |
The equipment adopts a dual-chamber sealed constant-volume structure (inner chamber V₁ sample chamber + outer chamber V₂ pressure balance chamber), and is equipped with a multi-zone independent temperature-controlled heating system. Relying on the classic adiabatic algorithm "Heating - Waiting - Searching (HWS)", it can real-time track the temperature rise of the sample, compensate for the heat loss of the chamber, and maintain an approximately zero heat exchange adiabatic environment.
Options
Multi-point thermocouple
Multipoint thermocouple for spatial distribution measurement
Optional high-pressure components
Multiple gas sampling
Up to 4 independent samples per run, collected as a function of time, temperature, pressure, dT/dt, or dP/dt.
· Needle-puncture test selection
- Penetration depth: 100 mm
- Nail diameter: 1 – 10 mm
- Control functions: speed, distance, and force
Vacuum pump selection
Ultimate vacuum down to 0.05 bar
